CD40 Light duty belt conveyor

             v

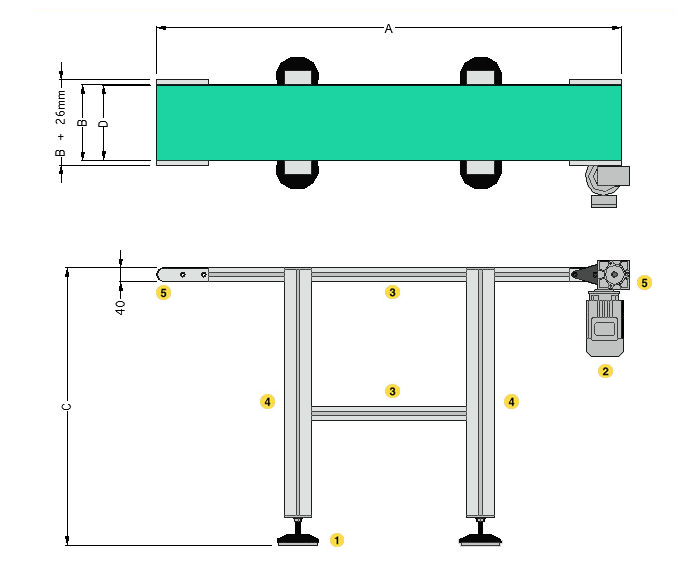

1:
  M14 thread with 80mm diameter foot , 2 off 11mm diameter fixing holes
2:
  Shaft mounted geared motor(speed and torque to suit application)
3:
  40mm × 40mm extruded aluminium profile with 4 off 10mm T slots
4:
  80mm × 40mm extruded aluminium profile with 4 off 10mm T slots
5:
  38mm diameter steel terminal roller

A:
  Conveyor length
B:
  Belt width + 4mm
C:
  Conveyor height +- 30mm adjustment
D:
  Belt width


Maximum length:   3 metres
Belt width:   36mm, 76mm, 116mm, 156mm. 196mm. 236mm and 276mm (others on request)
Conveyor width:   Belt width + 4mm
Conveyor height:   800mm +- 30mm adjustment (others on request)
Drive type:      Shart mounted geared motor
Drive Power:      0.16kw
Voltage:   240v 1ph 50Hz - 230v 3ph 50Hz - 415v 3ph 50hz
Drive position:      End as standard
Terminal rollers:   38mm diameter steel terminal rollers
Bed construction   Aluminium extrusion
Maximum load:   Up to 5 Kg/m
Belt speed:   10m/min standard (options available from 4.2 to 20 m/min)
Belt type:   2 Ply PVC black or green as standard ( PU and Grip top, others on request)
Belt tracking:    All belts are fitted with twin PU tracking profiles.
Under rollers :    NA

  Direct online stop start complete with overload
    Variable speed stop start
    Production stop
    24v DC Emergency stop
    24v DC Emergency stop with safety relay
    Photo electric cell end stop control
    Foot switch
    Remote stop start
    Timed stop start
    Panel mounted PLC



  Side Guides
    End stop
    Castors
