CD80 Light to Medium duty belt conveyor

             v

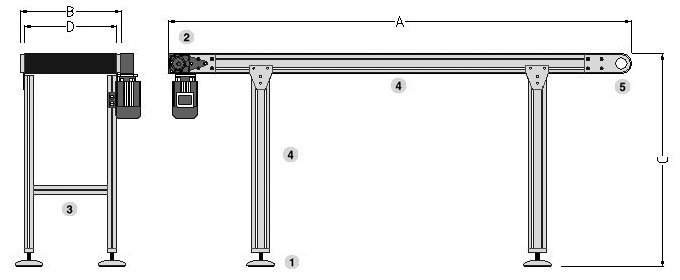

1:
  M14 thread with 80mm diameter articulated foot , 2 off 11mm diameter fixing holes
2:
  80mm diameter drive roller
3:
  40mm × 40mm extruded aluminium profile with 4 off 8mm T slots
4:
  80mm × 40mm extruded aluminium profile with 6 off 8mm T slots
5:
  80mm diameter terminal roller

A:
  Conveyor length
B:
  Belt width + 4mm
C:
  Conveyor height +- 30mm adjustment
D:
  Belt width


Maximum length:   10 metres
Belt width:   36mm to 996mm
Conveyor width:   Belt width + 4mm (+ 34mm over terminal ends)
Conveyor height:   800mm +- 30mm adjustment (others on request)
Drive type:      Shaft mounted geared motor
Drive Power:      0.18 to 0.37kw dependant on product load, conveyor length and belt speed
Voltage:   240v 1ph 50Hz - 230v 3ph 50Hz - 415v 3ph 50hz
Drive position:      End as standard
Terminal roller:   80mm as standard
Bed construction   Skid bed type made from 2mm punched and folded galvanised mild steel
Maximum load:   Up to 15 Kg/m
Belt speed:   10m/min standard (options available from 4.2 to 63.6 m/min)
Belt type:   2 Ply PVC black or green as standard, PU and Grip top, others on request
Belt tracking:    All belts are fitted with twin PU tracking profiles.
Under rollers :    40mm diameter with precision bearings

  Direct online stop start complete with overload
    Variable speed stop start
    Production stop
    24v DC Emergency stop
    24v DC Emergency stop with safety relay
    Photo electric cell end stop control
    Foot switch
    Remote stop start
    Timed stop start
    Panel mounted PLC



  Side Guides
    End stop
    Castors
