Belt Conveyors. CD40 slimline and low profile

CD40 belt conveyors are manufactured from 40mm square extruded aluminium profile with a folded modular galvanised steel skid bed. The conveyors have 40mm diameter precision manufactured drive roller and are driven by a shaft mounted geared motor(centre drive option), the terminal rollers are also 40mm diameter. The conveyors can handle and a product loading of up to 5Kg per metre.. The conveyor belt is fully guided using our TrueTrack belt guidance system.

We manufacture CD40 Belt Conveyors in the following options:

  • Shaft Mounted Geared Motor Drive Belt Conveyors
  • Belt conveyor systems
  • Incline/Decline Belt Conveyors
  • Multi Tiered Belt Conveyors
  • Special Purpose Belt Conveyors

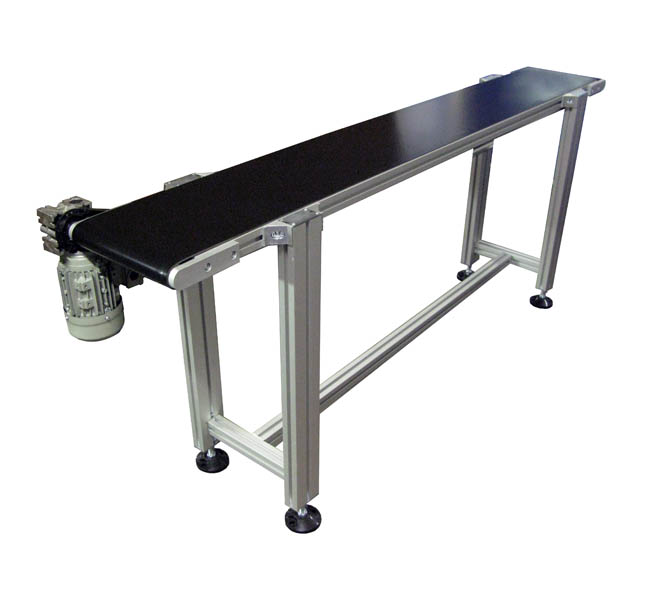

Belt conveyor CD40

  • Features
  • Up to 5kg capacity per linear metre (level)
  • Belt width from 36mm to 596mm
  • Lengths from 300mm to 10m
  • Self tracking belts– increased belt life.
  • Adjustable height
  • 40mm deep extruded aluminium profile side frames.
  • Geared motor drive.
  • Plug and play control options
  • 40mm diameter terminal rollers
  • 8mm T-Slots
  • Nut and bolt assembly





Belt conveyor CD40 compact

Compact
CD40 belt conveyor can be manufactured in lengths from 300mm.






Belt conveyor system

Belt conveyor systems
CD40 belt conveyor modules are ideal for transportation of small parts.






Belt conveyor CD40  side guide

Adjustable
side guides.








Belt conveyor CD40 centre drive

Centre Drives
we can supply all our CD40 belt conveyors with a centre drive option.







Belt conveyor with variable speed control

Electrical Control
variable speed stop start.








Belt conveyor CD40 specials

Specials
if a standard belt conveyor will not do let us know what you need and we will build it for you.





  Belt conveyor flat packed

Flat Pack delivery
conveyors can be dispatched flat packed for self-assembly.









  • Electrical control options



Conveyor technical details

Variable speed stop start

Variable speed
stop start. with stop start buttons and variable speed potentiometer. Coated steel enclosure (IP65) 300mm,200mm,150mm

Price £295.00 each





  Stop start

Stop start (DOL)
single/three phase direct online stop start complete with overload 240/415 volts

Price £76.00 each







Emergency stop button

Emergency stop
button twist release

Price £28.00 each





  PEC sensor kit

PEC sensor
phote electric sensor kit including sensor, mounting bracket, reflector with mounting bracket

Price £78.00 each







.

  • Note: Emergency stops and PEC sensors can only be used with the Variable speed stop start option.

    All prices exclude VAT.
