Belt Conveyors CD80 strong and versatile!

CD80 belt conveyors are suitable for a multitude of handling tasks where strength and robustness are required. Manufactured from extruded aluminium profile with folded modular galvanised steel skid beds it gives a good combination of strength and versatility. The conveyors has a 80mm diameter fabricated roller with a shaft mounted geared motor, the terminal rollers are also 80mm diameter. The conveyors can handle a product loading of up to 10Kg per metre. The drive and terminal rollers are fitted into modular carriages that are fully adjustable and easily removable for maintenance. The conveyor belt is fully guided using our TrueTrack belt guidance system.

We manufacture CD800 Belt Conveyors in the following options:

  • Belt conveyor systems
  • Incline/Decline Belt Conveyors
  • Multi Tiered Belt Conveyors
  • Special Purpose Belt Conveyors

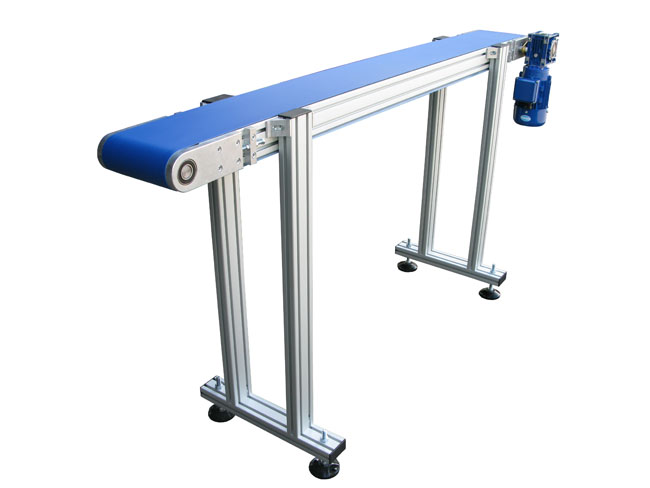

Belt conveyor CD80

  • Features
  • Up to 10kg capacity per linear metre (level)
  • Belt width from 36mm to 996mm
  • Available in any length to fit your applications
  • Self tracking belts– increased belt life.
  • Adjustable height
  • Extruded aluminium profile frames and support legs
  • Shaft mounted geared motor drive system
  • Plug and play control options





Belt conveyor geared motor

Geared Motor
drives give a wide range of powers and speed options. Rubber lagged drive drum option available.




Belt conveyor twin strand

Specials
Twin strand bumper conveyor manufactured from CD80 belt conveyor modules.










  • Electrical control options



Conveyor technical details

Variable speed stop start

Variable speed
stop start with stop start push buttons and variable speed potentiometer or stop start rocker switch and variable speed potentiometer (dependant on control option). Coated steel enclosure (IP65) 300mm high, 200mm wide, 150mm deep.

Prices from £295.00 each





  Stop start

Stop start (DOL)
single/three phase direct online stop start with 240/415 volt coil complete with overload .

Prices from £76.00 each







Emergency stop button

Emergency stop
button twist release.

Prices from £28.00 each





  PEC sensor kit

PEC sensor
phote electric sensor kit including sensor, mounting bracket, reflector with mounting block.

Prices from £78.00 each







.

  • Note: Emergency stops and PEC sensors can only be used with the Variable speed stop start option.

    All prices exclude VAT.
