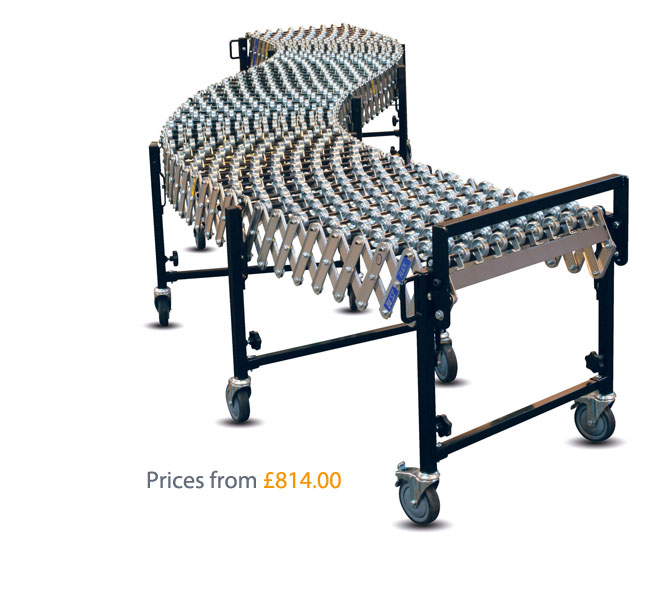

Flexible Conveyors Skatewheel BF200 & BF300.Flexible and Expandable



Gravity Applications
These conveyors are both expandable and flexible so whatever the aplication the BF range has a conveyor modle to suit. A proven performer for truck loading and unloading. Ideally suited for packaging, distribution centres, shipping and receiving and flexible assembly lines. Built tough to handle applications running three shifts per day. The Optional Impact Support Section is recommended for high impact receiving applications.



  • Features
  • BF200 300kg and BF300 450kg capacity per linear metre (level)
  • 720 to 1000 mm adjustable conveyor height
  • 450, 600 and 750 mm conveyor widths
  • Available in any length to fit your applications
  • Self Tracking – Cartons follow the twists and turns of the conveyor path without using engineered curves.
  • Adjustable Height – Adjustable locking bolts to raise or lower the conveyor bed height.
  • Square Tubing Legs – BEST offers heavy duty square tubing legs for longer service life.
  • 32mm Side Plates – Aluminium alloy construction features a ribbed design for added durability. Assembled with bolts and lock nuts.
  • Structural Steel Support – Channel steel spans the entire conveyor width for unequalled strength.
  • Castors with brakes – 127mm x 38mm swivel castors roll easily. Castor brakes lock both wheel and swivel simultaneously while the conveyor is in use.



  • Accessories





Bflex_200

End_stop

Package Stop
Stops cartons at the end of the
conveyor and drops down when
not needed.

All widths £52.50


End_stop

Impact Support Section
Built into the conveyor– not an
add-on. Offers extra support to
handle punishing conditions.

1200mm long £23.35

End_stop

Leg or Axle Connect Brackets
Easily connects two or more
conveyors to span greater
distances.

per set £22.00


End_stop

Axle Centres
Optional 76mm and 102mm
axle centres are available for
small package applications.

POA


End_stop

Skatewheels
Available with zinc-plated steel
skatewheels for heavy loads or
blue nylon skatewheels for light
duty applications.
Please note: load capacity is
75kg per linear metre with blue
nylon skatewheels.

POA



End_stop

150mm x 50mm Swivel Castors
For easier rolling over uneven
surfaces. Adds 38mm to conveyor height.

Per leg set £21.00


End_stop

Side Rails
Prevents cartons from
skewing off the conveyor in
accumulation applications.

per 305mm £28.50

  End_stop

Perpendicular Legs
Keeps legs vertical in both the
expanded and compacted positions
for easier mobility and added
strength.

Per leg set £19.23







  • Specification and prices
BF200 - 450mm wide
Model Number
Closed to extended length
Number of legs
Wheels per axle
Shipping weight
Price
BF200-18-12
950mm to 3660mm
4
7
78kg
£814.00
BF200-18-16
1300mm to 4880mm
5
7
103kg
£1051.00
BF200-18-20
1600mm to 6100mm
6
7
128kg
£1,288.00
BF200-18-24
1900mm to 7320mm
7
7
153kg
£1,525.00
BF200 - 600mm wide
Model Number
Closed to extended length
Number of legs
Wheels per axle
Shipping weight
Price
BF200-24-12
950mm to 3660mm
4
9
90kg
£870.00
BF200-24-16
1300mm to 4880mm
5
9
116kg
£1,130.00
BF200-24-20
1600mm to 6100mm
6
9
145kg
£1,390.00
BF200-24-24
1900mm to 7320mm
7
9
174kg
£1,650.00
BF200 - 750mm wide
Model Number
Closed to extended length
Number of legs
Wheels per axle
Shipping weight
Price
BF200-30-12
950mm to 3660mm
4
10
102kg
£909.00
BF200-30-16
1300mm to 4880mm
5
10
122kg
£1,181.00
BF200-30-20
1600mm to 6100mm
6
10
153kg
£1,453.00
BF200-30-24
1900mm to 7320mm
7
10
184kg
£1,725.00

BF300 - 450mm wide
Model Number
Closed to extended length
Number of legs
Wheels per axle
Shipping weight
Price
BF300-18-12
1300mm to 3660mm
4
7
83kg
£857.00
BF300-18-16
1700mm to 4880mm
5
7
111kg
£1,113.00
BF300-18-20
2000mm to 6100mm
6
7
129kg
£1,369.00
BF300-18-24
2400mm to 7300mm
7
7
162kg
£1,625.00
BF300 - 600mm wide
Model Number
Closed to extended length
Number of legs
Wheels per axle
Shipping weight
Price
BF300-24-12
1300mm to 3660mm
4
9
114kg
£932.00
BF300-24-16
1700mm to 4880mm
5
9
151kg
£1,213.00
BF300-24-20
2000mm to 6100mm
6
9
188kg
£1,494.00
BF300-24-24
2400mm to 7300mm
7
9
226kg
£1,775.00
BF300 - 750mm wide
Model Number
Closed to extended length
Number of legs
Wheels per axle
Shipping weight
Price
BF300-30-12
1300mm to 3660mm
4
10
125kg
£987.00
BF300-30-16
1700mm to 4880mm
5
10
165kg
£1,283.00
BF300-30-20
2000mm to 6100mm
6
10
206kg
£1,579.00
BF300-30-24
2400mm to 7300mm
7
10
248kg
£1,875.00



  • Flexible skatewheel conveyors can be manufactured in custom length to suit your individual conveyor application.
